Gully Grating
With & Without Frame
WGF series | 9 sizes | incl. 600 round model.
WGF series | 9 sizes | incl. 600 round model.

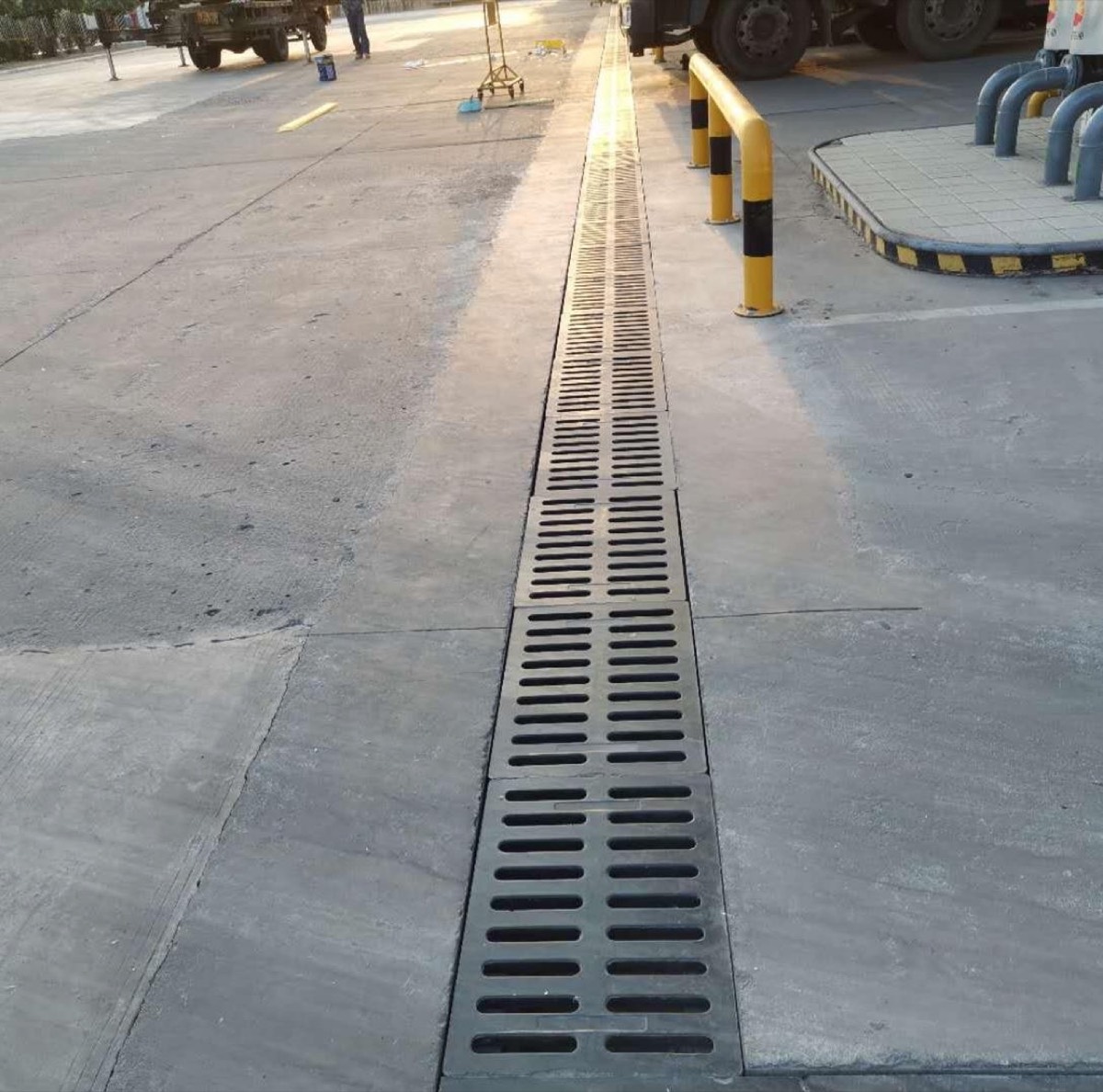

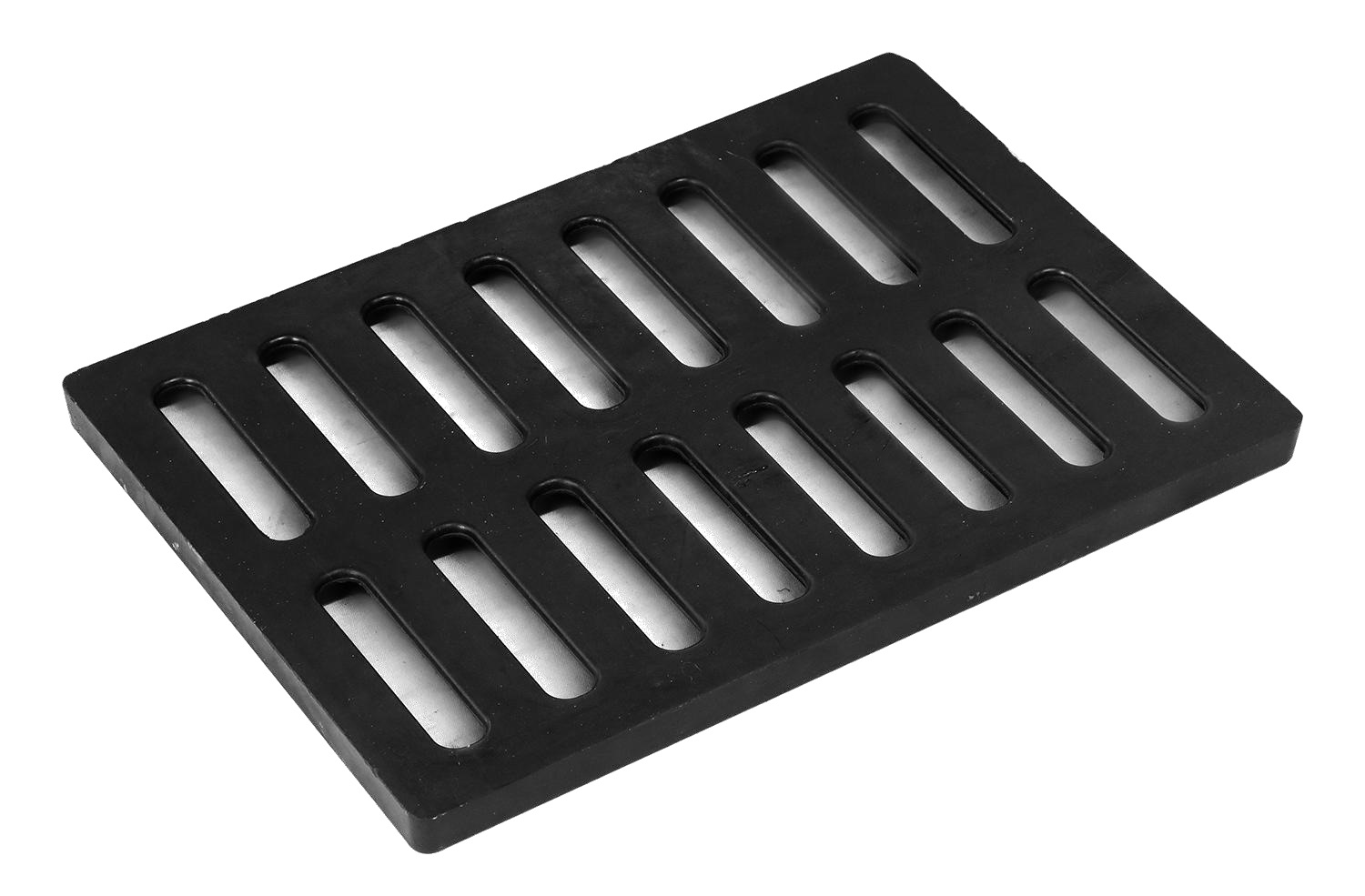

Composite gully grating without frame is used outdoors for drainage in urban areas like streets, sidewalks, parking lots and industrial sites. They cover drainage gullies, allowing water through while blocking debris. Their frameless design makes them lightweight, easy to install and maintain compared to metal grates. They are durable, corrosion-resistant, and ideal for diverse weather.
| Product Code | Size (mm) | Load Class | Weight |
|---|---|---|---|
| WG-001 | 200x500x25 | Light duty | 4.0 kg |
| WG-002 | 300x500x30 | Light duty | 6.5 kg |
| WG-003 | 350x500x30 | Light duty | 7.9 kg |
| WG-004 | 400x500x40 | Light duty | 11.0 kg |
| WG-005 | 400x600x40 | Light duty | 12.5 kg |
| WG-006 | 380x680x40 | Medium duty | 14.5 kg |
| WG-007 | 450x750x40 | Medium duty | 20.4 kg |
| WG-008 | 500x500x40 | Medium duty | 15.9 kg |
| WG-009 | 350x500x50(60) | Heavy duty | 14.0 kg |

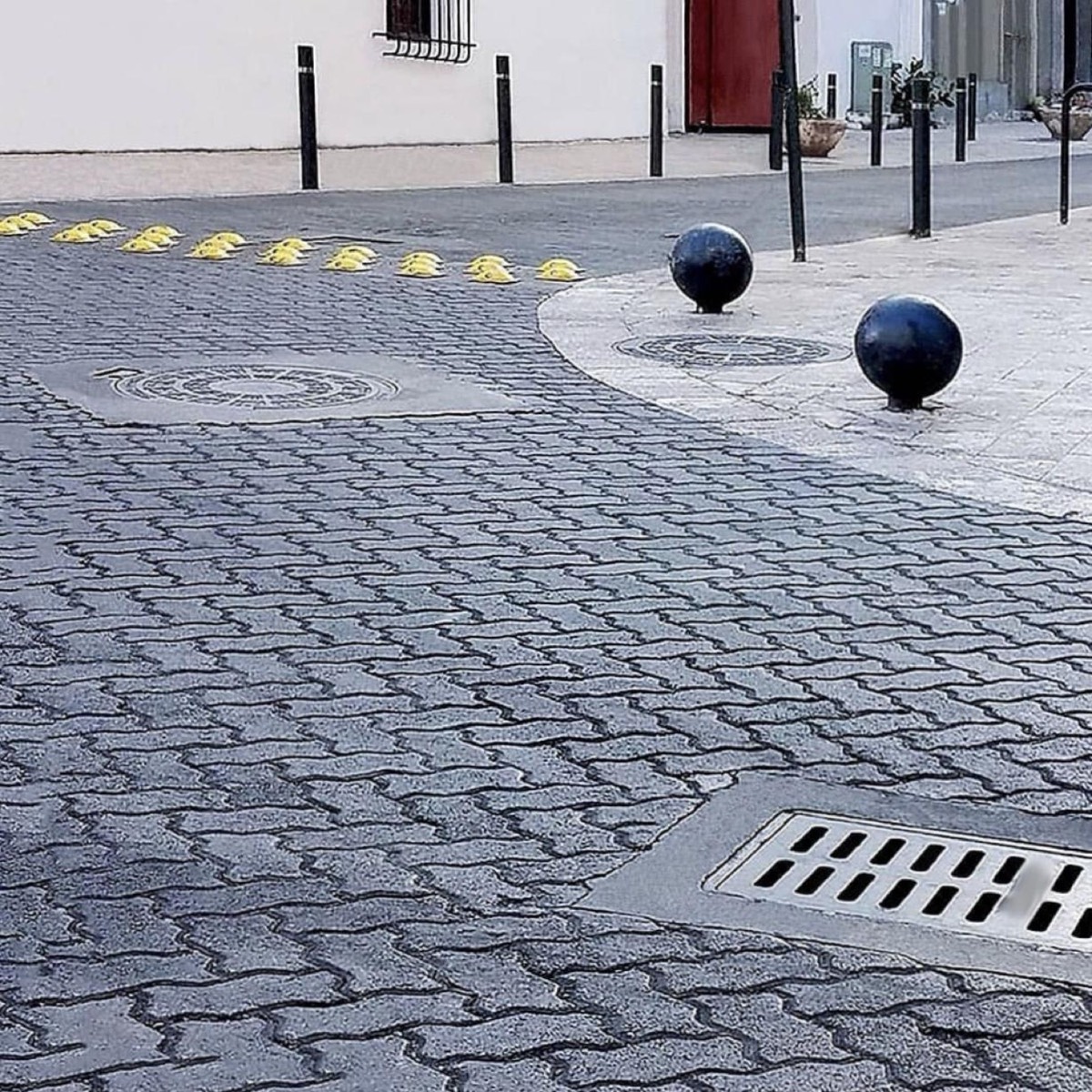

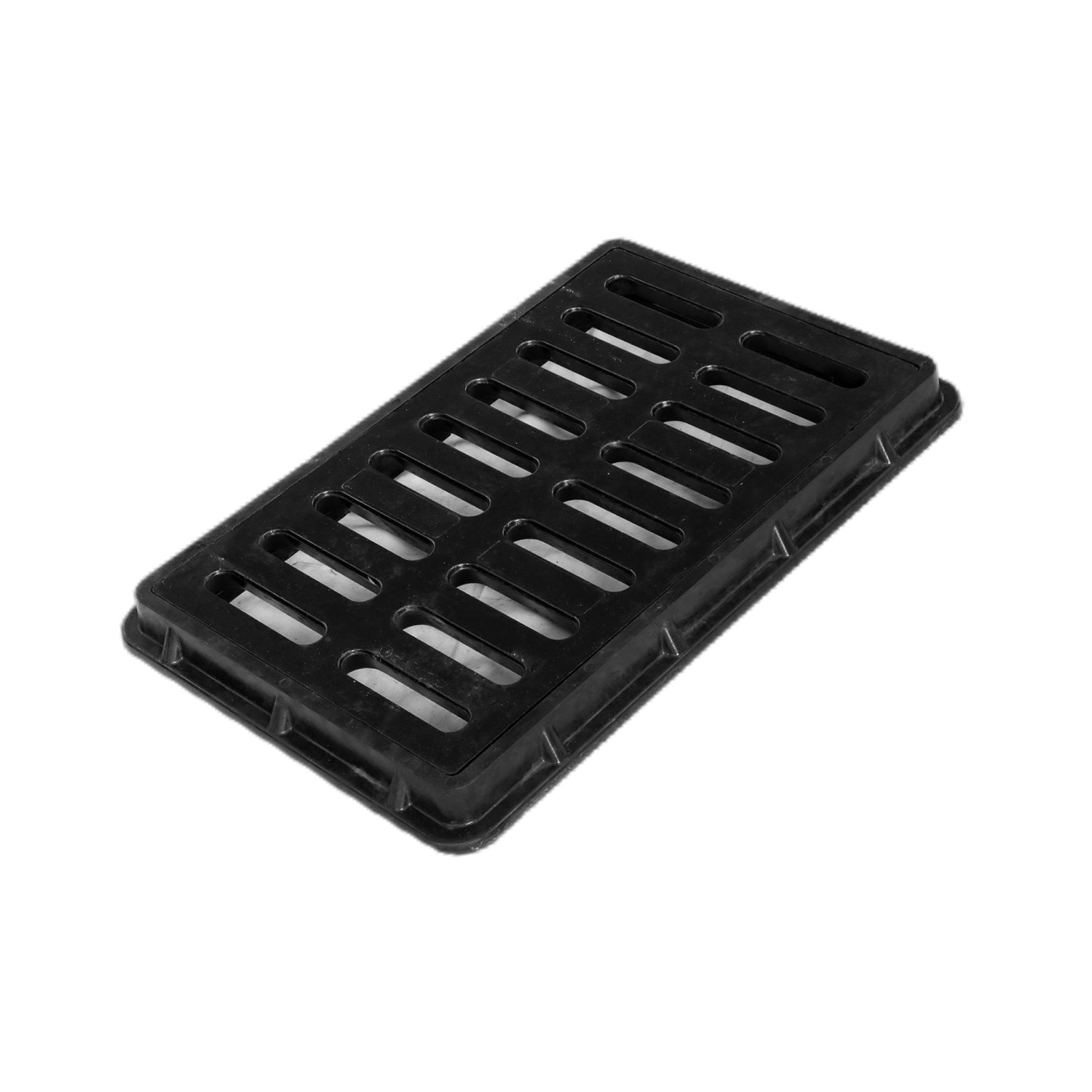

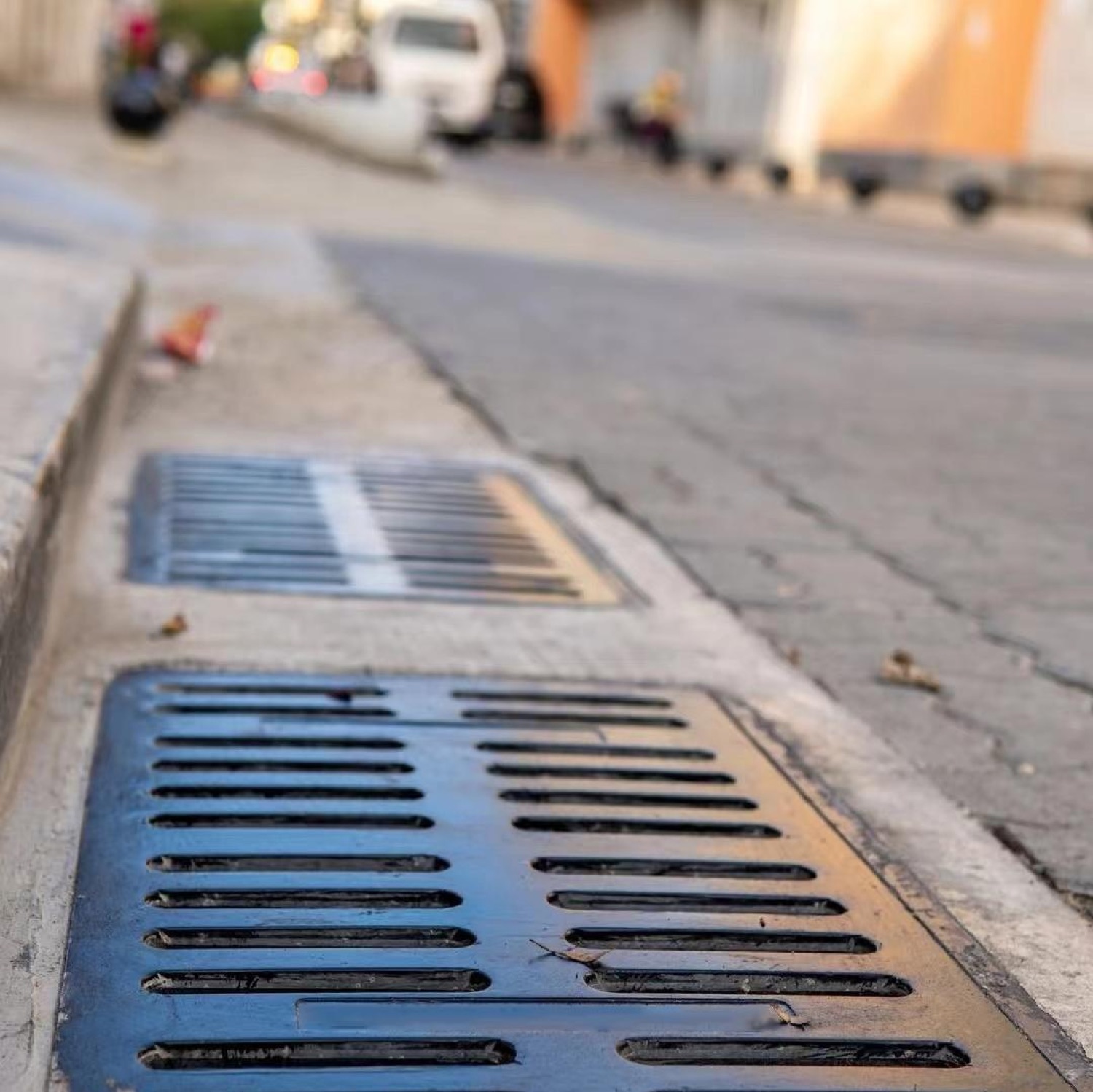

Composite gully grating with frame is the ideal solution for outdoor drainage in urban environments. Designed with enhanced load-bearing capacity, this advanced grating system offers superior durability and greater flexibility during on-site installation compared to frameless options.
| Product Mode | Size (mm) | Load Class | Weight |
|---|---|---|---|
| WGF-001 | 400x500x40 | Light duty | 15.0 kg |
| WGF-002 | 400x600x40 | Light duty | 20.0 kg |
| WGF-003 | 380x680x40 | Light duty | 27.8 kg |
| WGF-004 | 450x750x40 | Light duty | 31.0 kg |
| WGF-005 | 400x600x40 | Light duty | 20.0 kg |
| WGF-006 | 432x517x100 | Medium duty | 54.0 kg |
| WGF-007 | 500x500x40 | Heavy duty | 15.0 kg |
| WGF-008 | 380x680x50 | Heavy duty | 36.0 kg |
| WGF-009 | Φ600x50 | Heavy duty | 34.0 kg |
